dasso.CTECH®
CTECH Soffit
Exterior soffit and ceiling boards for canopies, entrances and covered walkways.
The product

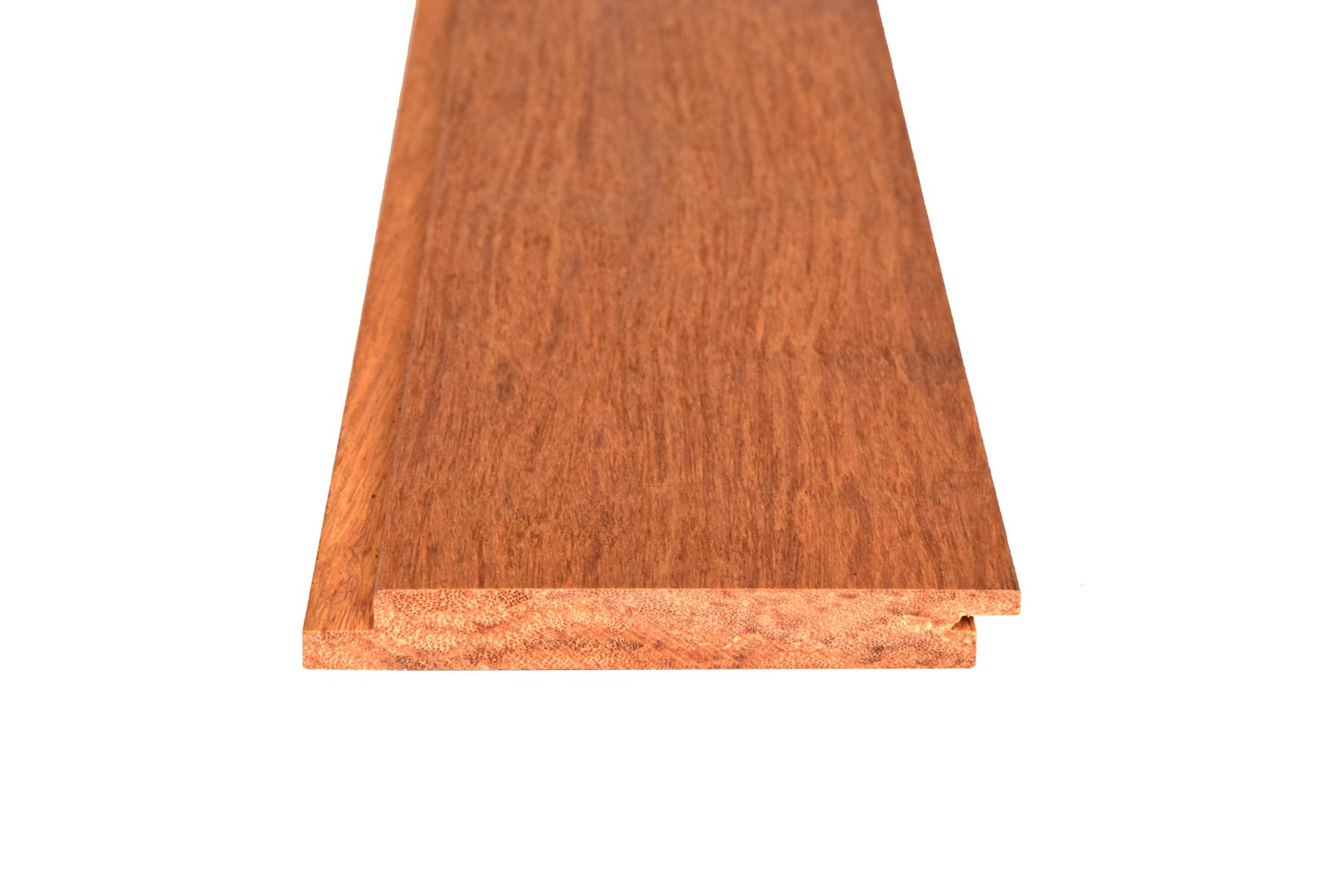

Engineered detail, close up.
Exterior soffit and ceiling boards for canopies, entrances and covered walkways.
- Dimensions
- 2440 × 137 × 18 mm
- Weight
- ~19 kg/m²
- Fixing
- Concealed suspended rail
- Fire class
- B-s1, d0
Advantages of dasso.CTECH®
Fire resistance
Decking reaction to fire: Class Bfl-s1 (EN 13501-1)
Cladding reaction to fire: Class B-s1,d0 (EN 13501-1)
Mould resistance
Class 0
[DIN EN ISO 846: 1997-10] [DIN EN 152: 2011]
Termite resistance
Reticulitermes santonensis
DC D (durable) [EN 117]
Environmentally friendly
Negative carbon footprint over its full life cycle.
See our Environmental Product Declarations (EPD).
Hardness & durability
Durability Class 1 (EN 350:2016)
Use class 4 (EN 350 – EN 335)
Warranty
25-year warranty for residential and commercial applications.
Gallery
Product in situ
4 photos · click to enlarge
About CTECH®
Long-format bamboo boards designed for exposed exterior ceilings. Same core material as CTECH decking, engineered for overhead installation with concealed fixings.
A premium finish for hotel entrances, restaurant terraces and public canopies.
Key features
- Lightweight bamboo core
- Concealed suspended system
- UV-stable pre-oiled finish
- Long-format planks up to 2440 mm
- Fire class B-s1, d0
- Compatible with LED integration
Reference projects
Where CTECH Soffit is specified
Private house — Surabaya
Indonesia

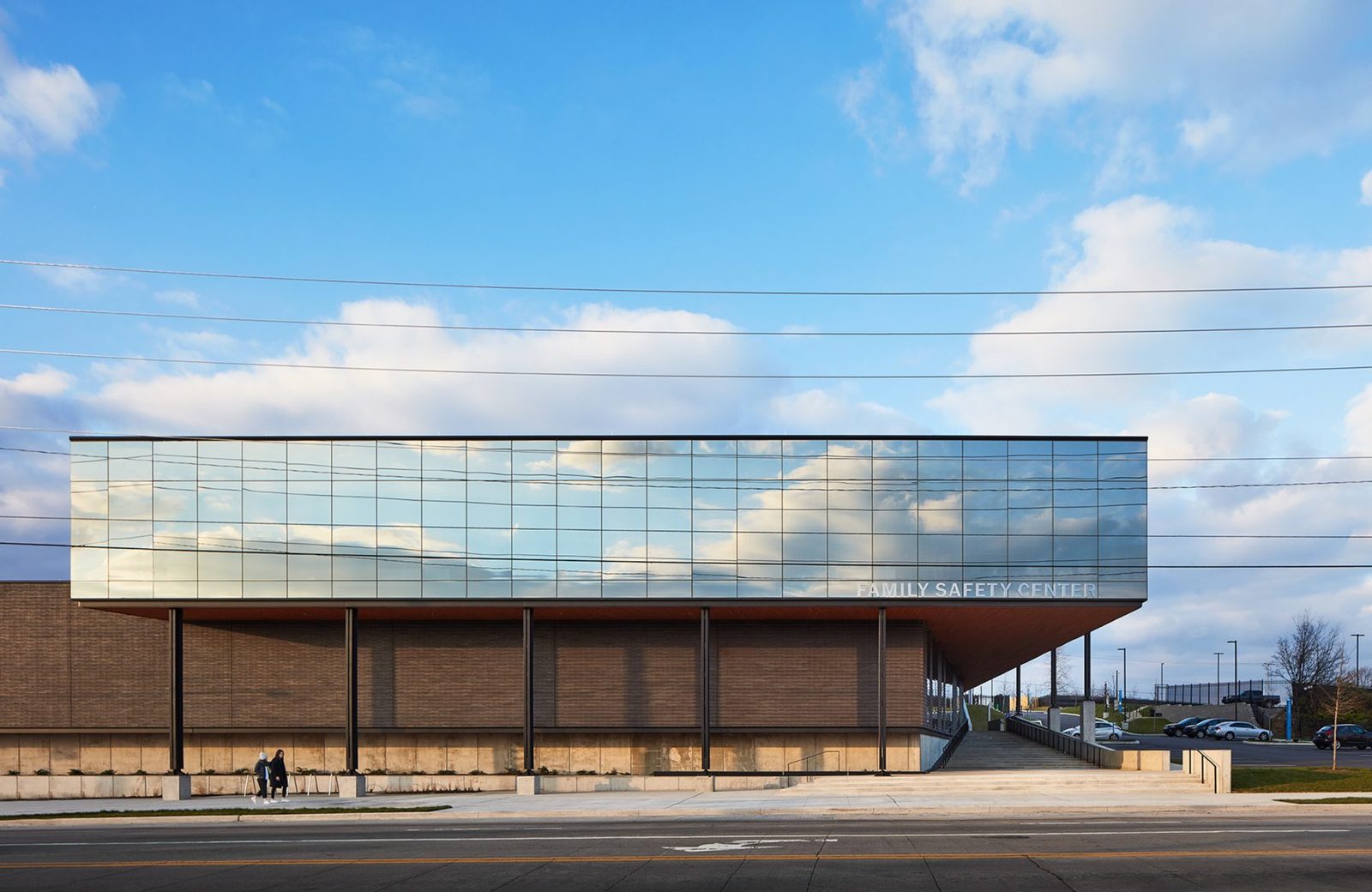

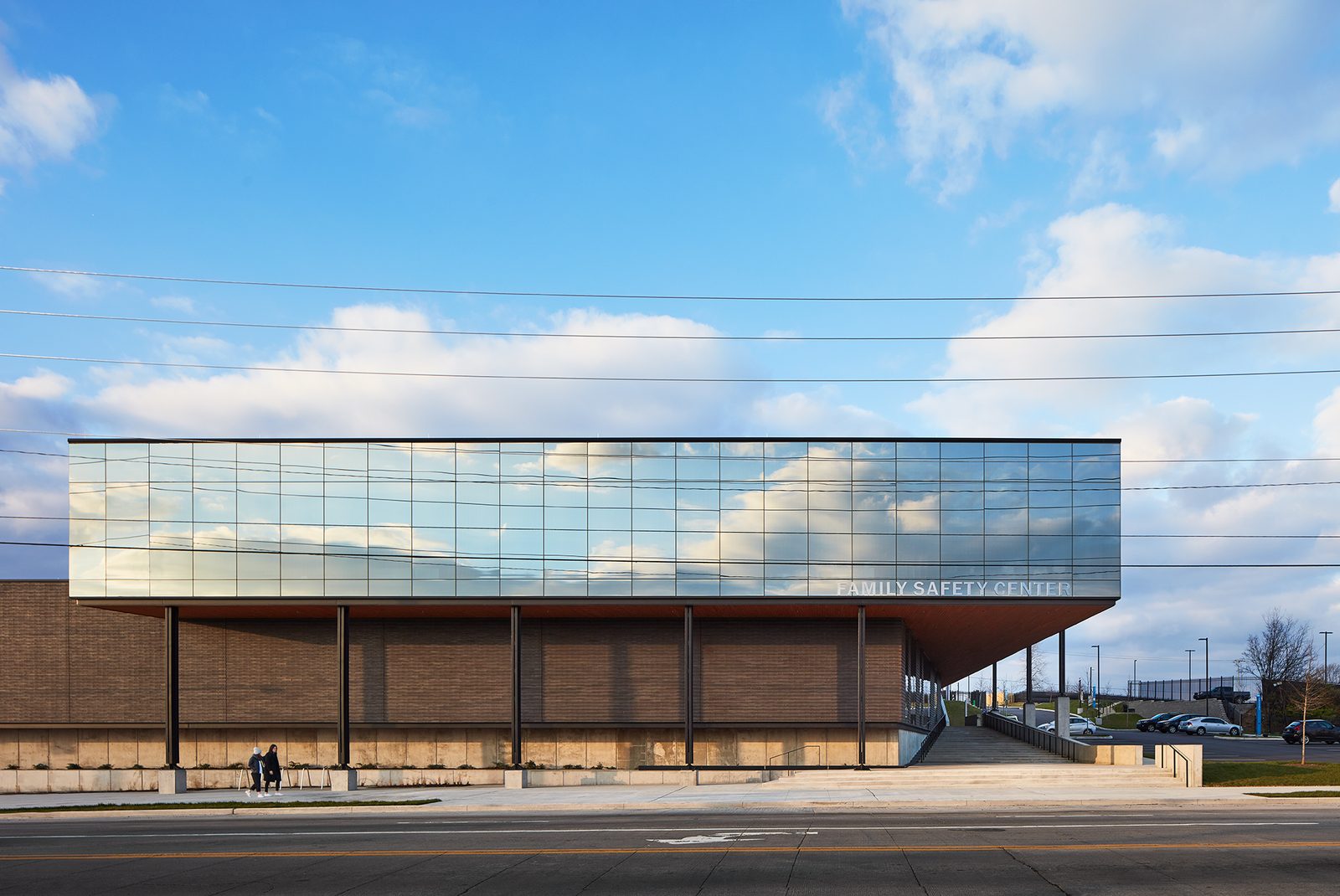

Nashville Family Safety Center
Nashville, USA
Hospitality canopy project
APAC
