dasso.CTECH®
CTECH Cladding
Exterior wall cladding boards with vertical or horizontal profiles.
The product

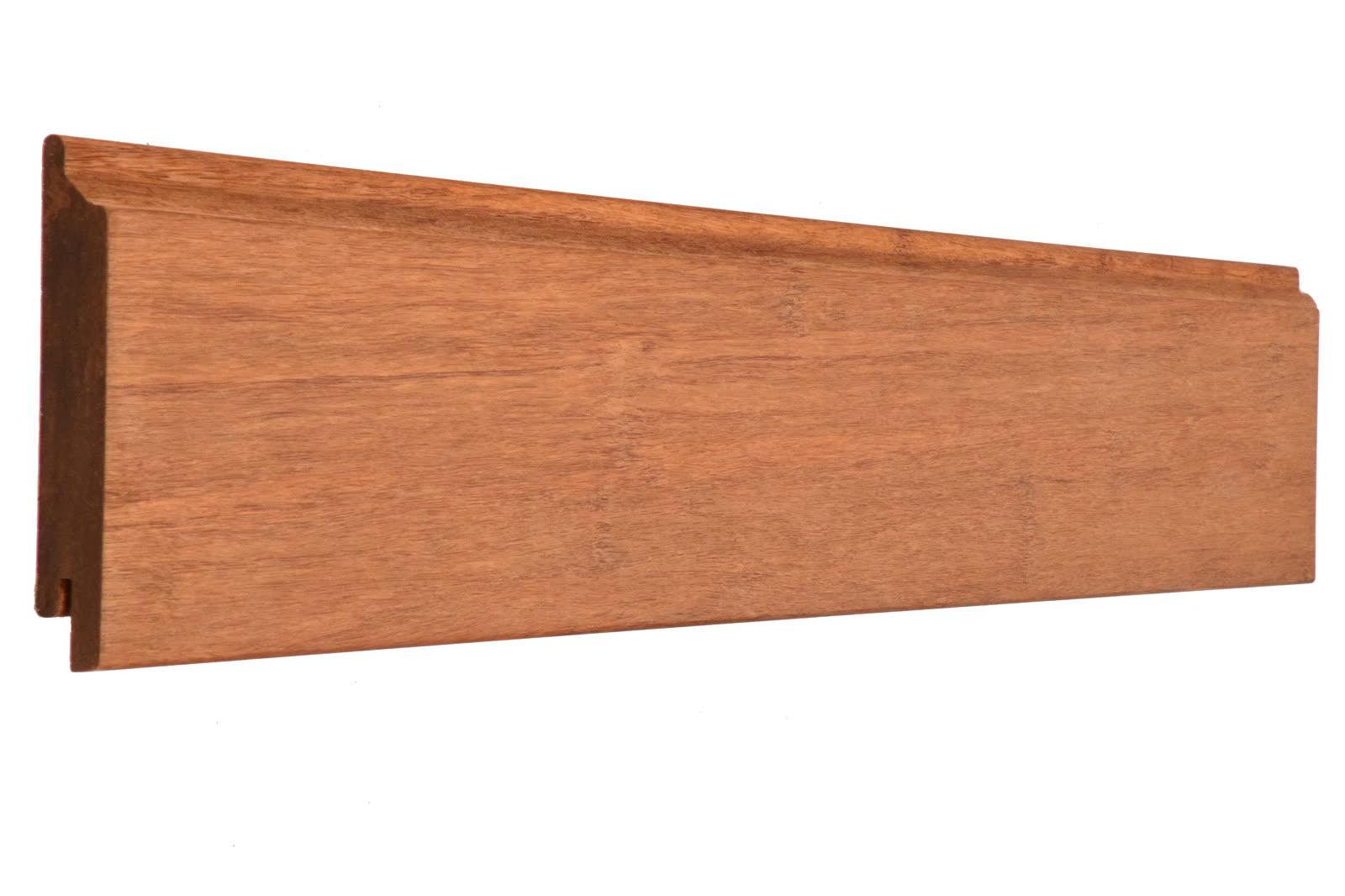

Engineered detail, close up.
Exterior wall cladding boards with vertical or horizontal profiles.
- Dimensions
- 1850 × 137 × 18 mm
- Fixing
- Concealed clip or face screw
- Weight
- ~21 kg/m²
- Colour
- Natural IPE
Advantages of dasso.CTECH®
Fire resistance
Decking reaction to fire: Class Bfl-s1 (EN 13501-1)
Cladding reaction to fire: Class B-s1,d0 (EN 13501-1)
Mould resistance
Class 0
[DIN EN ISO 846: 1997-10] [DIN EN 152: 2011]
Termite resistance
Reticulitermes santonensis
DC D (durable) [EN 117]
Environmentally friendly
Negative carbon footprint over its full life cycle.
See our Environmental Product Declarations (EPD).
Hardness & durability
Durability Class 1 (EN 350:2016)
Use class 4 (EN 350 – EN 335)
Warranty
25-year warranty for residential and commercial applications.
Gallery

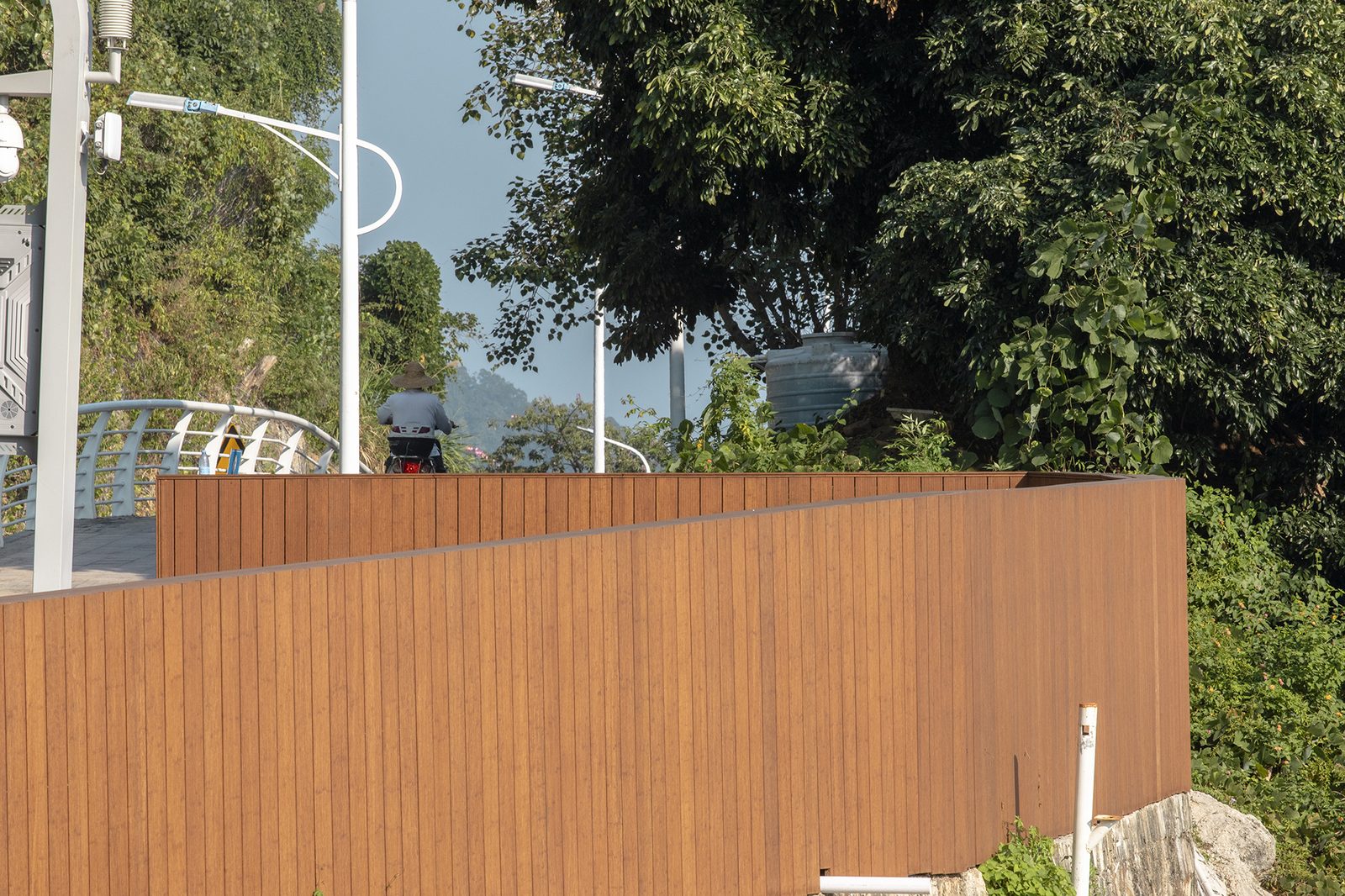

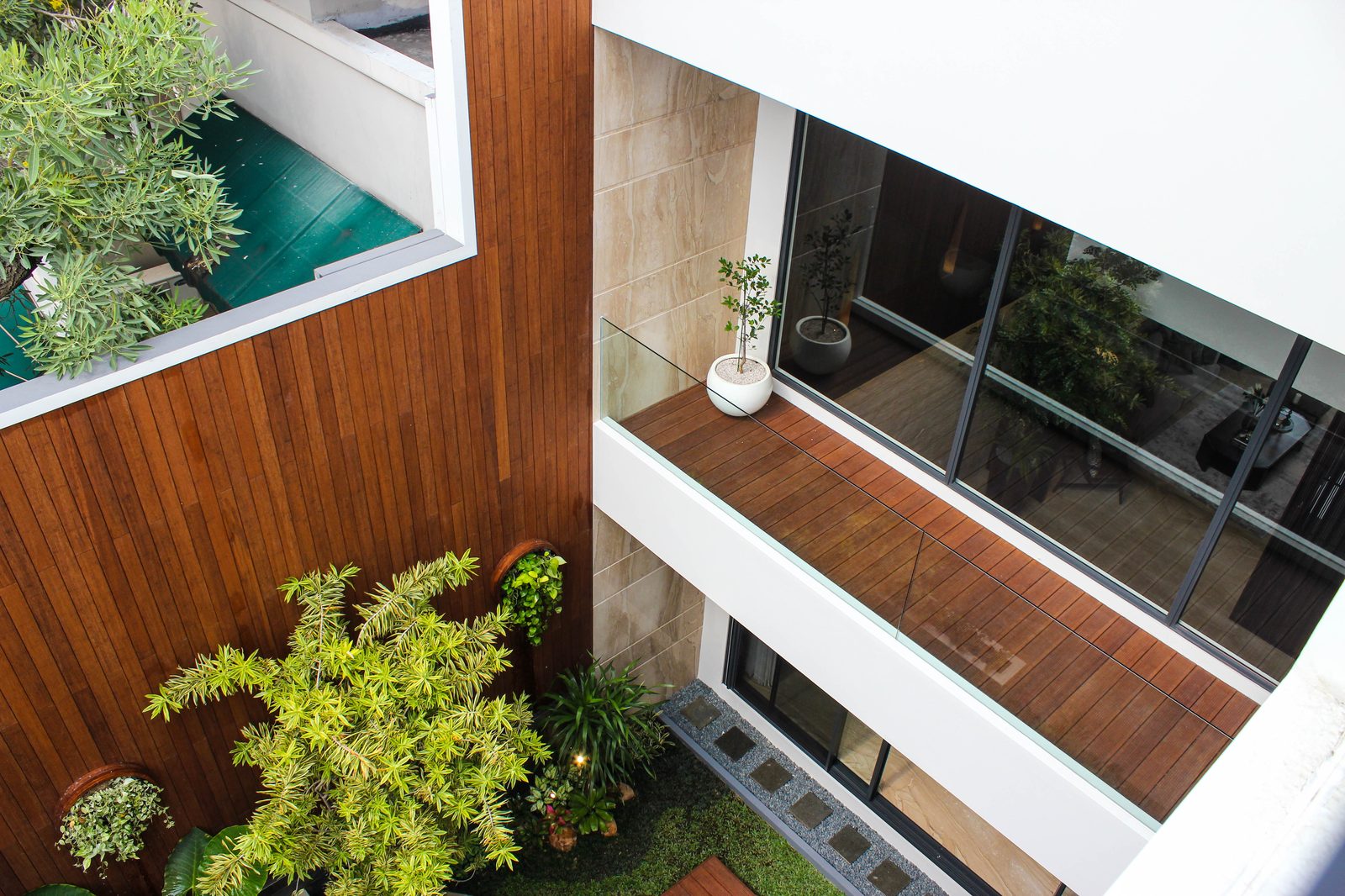

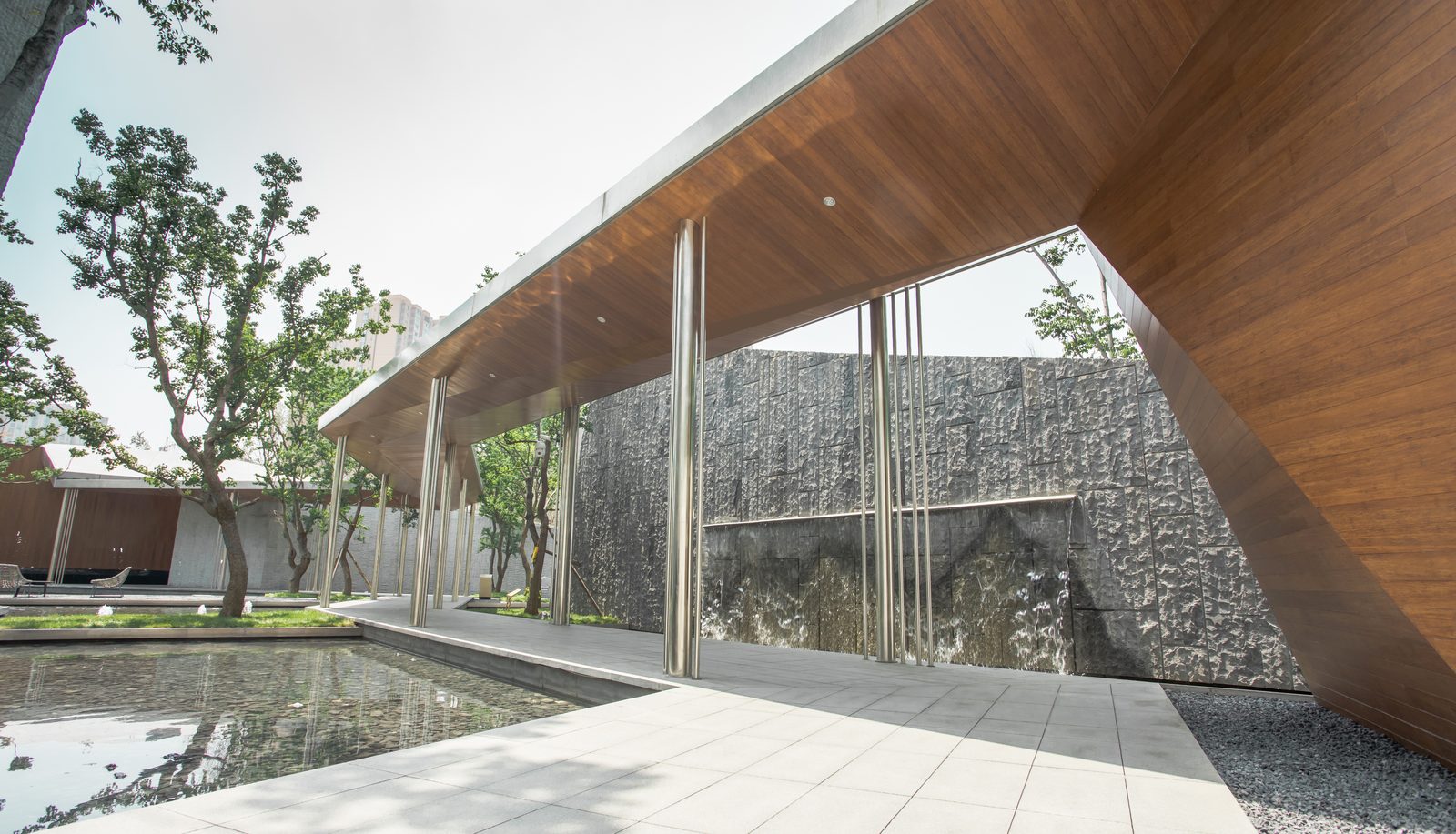

Product in situ
4 photos · click to enlarge
About CTECH®
A rainscreen cladding system in thermally densified bamboo, engineered for open-joint façades and ventilated walls.
Delivered pre-finished, with end-matched profiles and matching corner trims.
Key features
- Ventilated façade profiles
- End-matched tongue & groove
- Fire class B-s1, d0 (option)
- Concealed fixing system
- 10+ profiles available
- FSC® certified
Reference projects
Where CTECH Cladding is specified
Wenzhou Huizhong School
Wenzhou, China
Central Life
Xi'an, China
Yantian 19.5 km Broadwalk
Shenzhen, China
Private house
Surabaya, Indonesia
